Compact Charger
A compact charger for glider batteries.
From EUR 3,400 incl. VAT

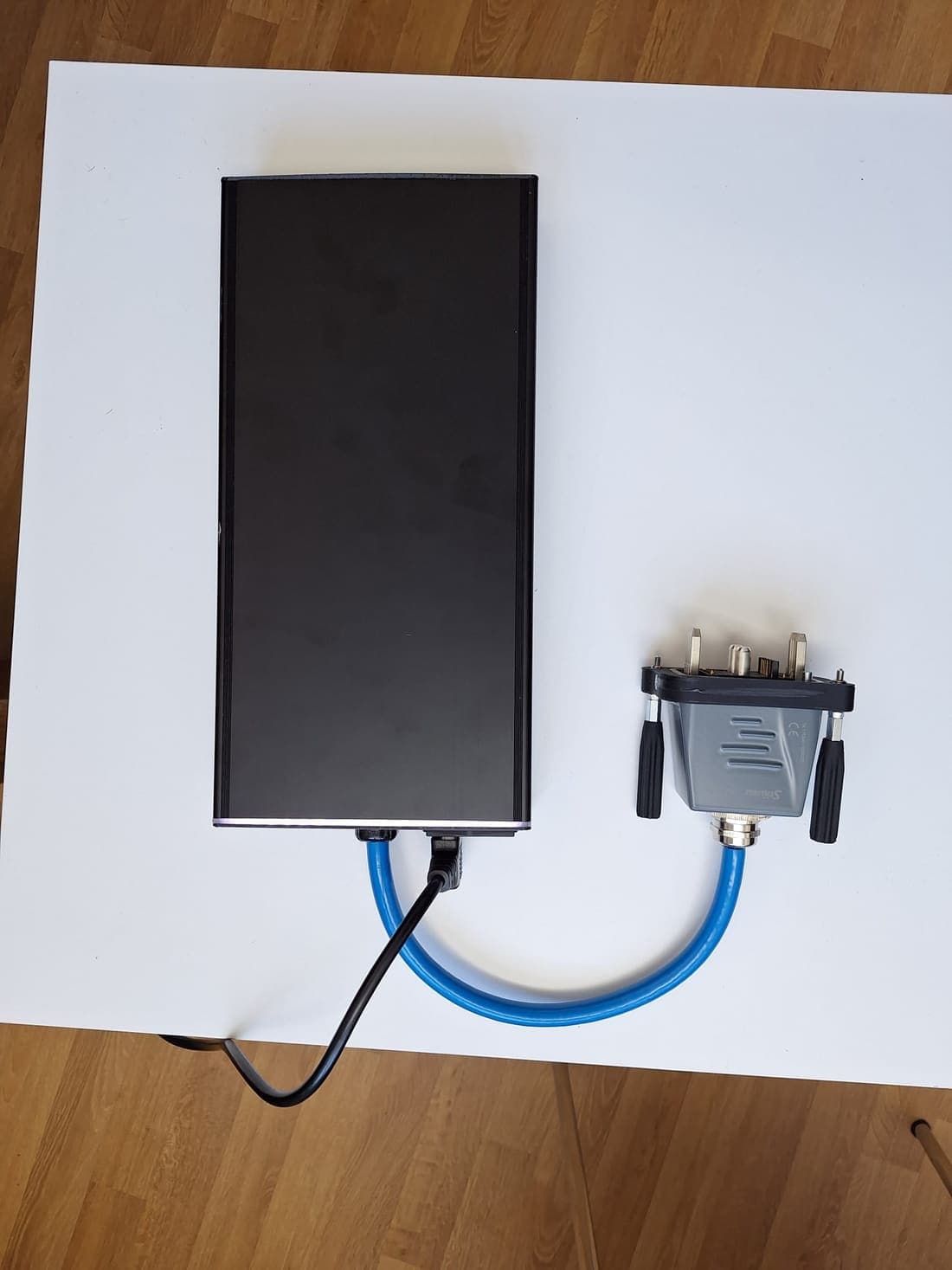

The Compact Smart Charger CSC 384 is a high-performance charger for Emectric BM 384 HV lithium battery systems in electric gliders and motorgliders. It manages intelligent charging, discharging and winter-storage charge through an integrated WiFi interface and the WeCharge web cockpit at wecharge.swiss-sailplane.ch.
Charge a single battery externally, or both batteries at once when they are installed in the aircraft. Set your target state of charge and power, discharge to a target before storage, or run a winter-storage charge to exactly 30 % SoC — all from your phone or laptop.

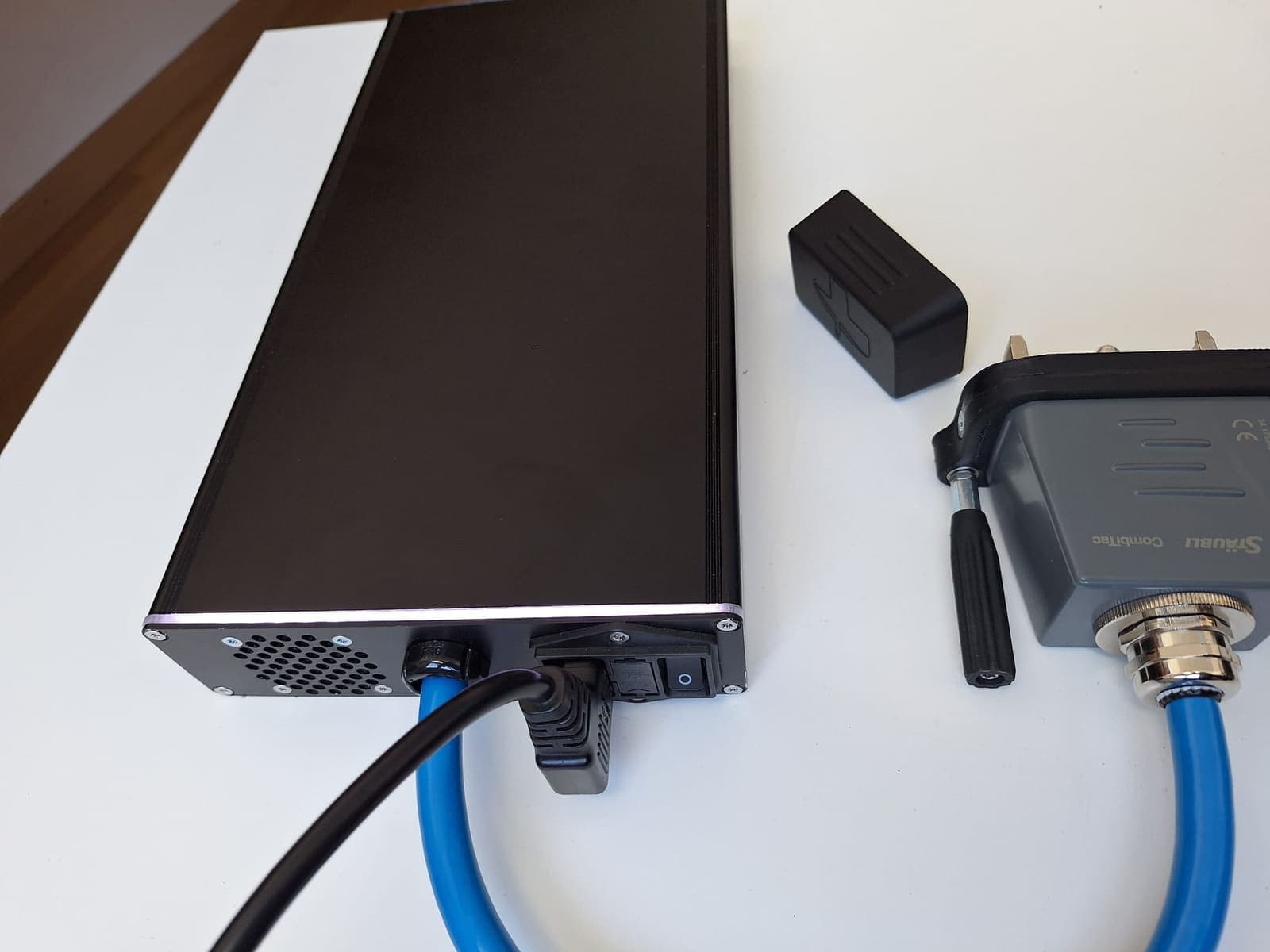

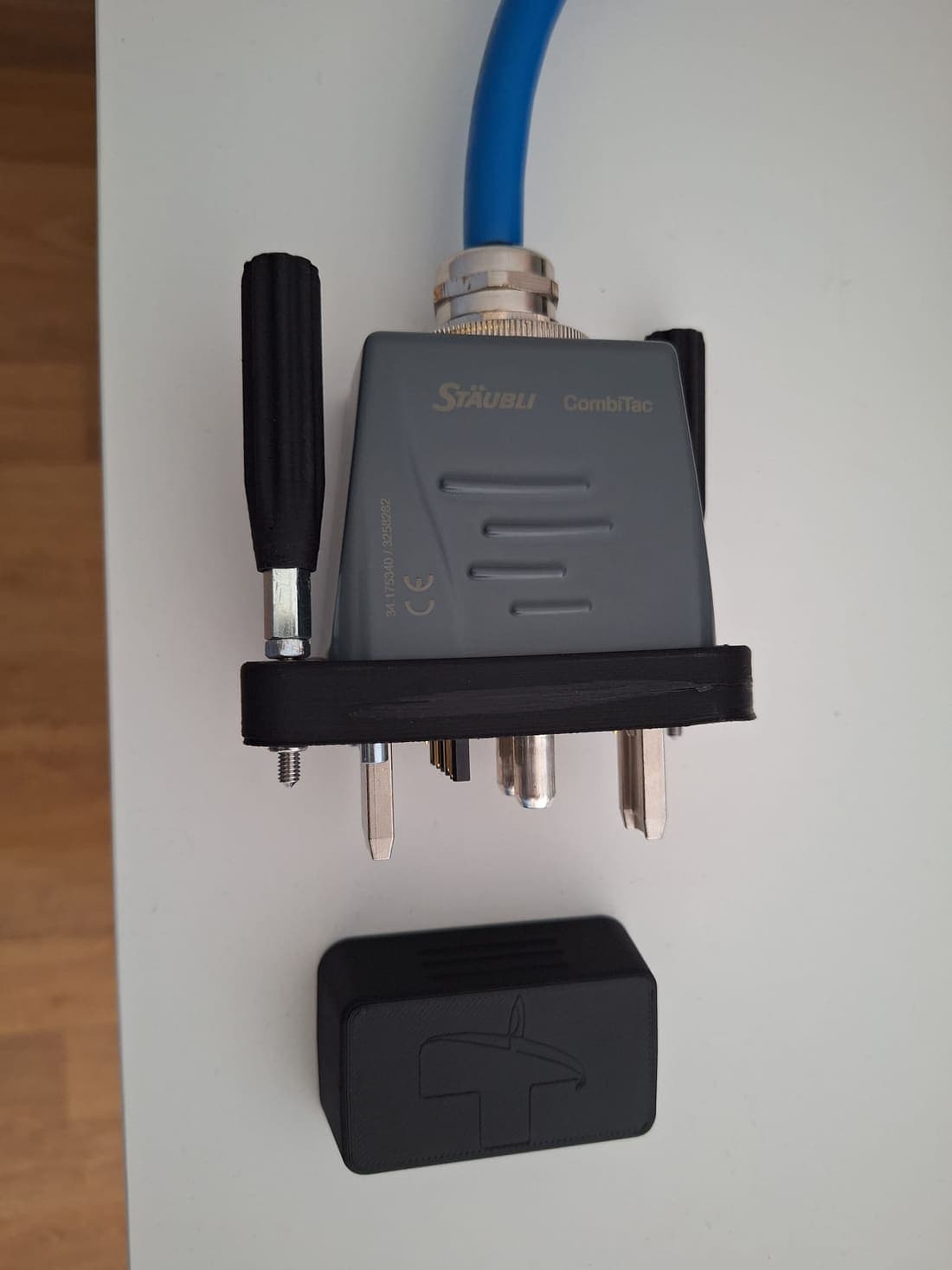

Designed to IEC 61851 and built for the field: an IP65 enclosure, a single multi-colour status LED readable from outside the aircraft, a connector interlock, thermal protection and a power-on self-test on every start.
Highlights
- Intelligent charge, discharge and winter-storage management
- Controlled from anywhere via WiFi and the WeCharge web cockpit
- Charges one battery externally, or both in the aircraft at once
- Selectable charge target (20–100 %) and power (100–1200 W)
- Single status LED, readable from outside the aircraft
- IP65, connector interlock, thermal protection and self-test
- Two-connector modelComing soon
- Goods
- 3.400,00 EUR
- Shipping
- 45,00 EUR
- Total
- 3.445,00 EUR
You will receive the bank details and a reference by email. Goods ship once payment is received.
Your details
Delivery address
All prices include 8.1% Swiss VAT. For delivery addresses abroad, Swiss VAT is deducted during checkout (export); customs/import charges are the customer's responsibility.
Specifications
- Model
- CSC 384
- Compatible batteries
- Emectric BM 384 HV
- Input voltage
- 110–250 VAC, 50/60 Hz
- Input current
- 9.5 A @ 110 VAC / 9 A @ 230 VAC
- Charging voltage
- 230–406 V DC
- Charging current
- 0–5 A
- Charging power
- 100–1200 W selectable (100 W steps)
- Max. charging power
- 800 W @ 110 VAC / 1400 W @ 230 VAC
- Ambient temperature
- 0 °C to +40 °C (derates above 35 °C)
- Humidity
- 20–90 % RH, non-condensing
- Protection class
- IP65
- Connectivity
- WiFi 2.4 GHz (802.11 b/g/n)
- Battery communication
- CAN 2.0A (via charging cable)
- Dimensions
- 335 × 165 × 46 mm (without cables)
- Weight
- 4.1 kg
Charging power derates automatically while cells balance or temperatures rise; the selected level is a maximum target. Questions about installation or compatibility? Contact us before you order.
